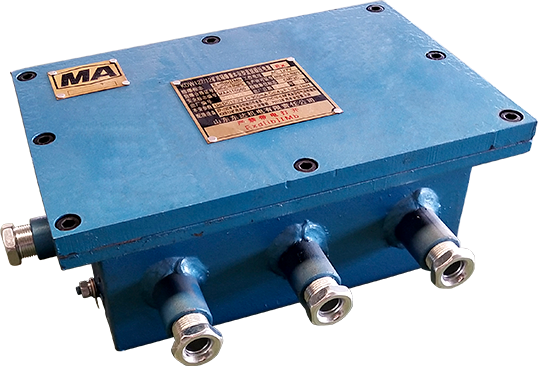

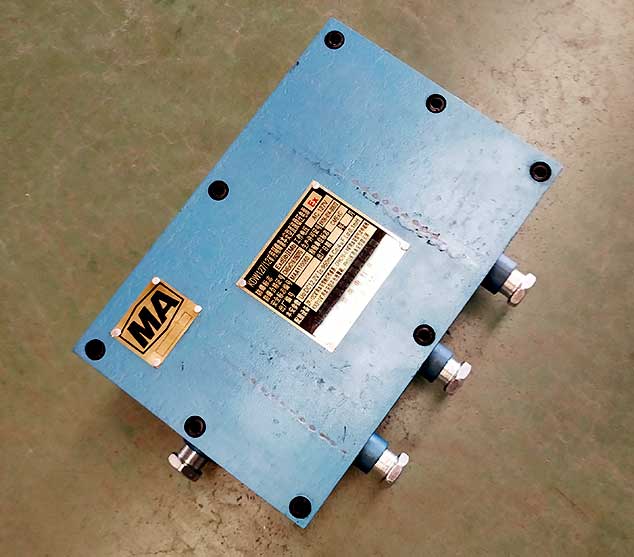

KDW127矿用隔爆兼本安型直流稳压电源是根据MT/T408《煤矿用直流稳压电源》煤炭行业标准来设计制造的。可用于煤矿井下或其它周围空气中含有爆炸性(如:甲烷)气体的工矿企业中。
The KDW127 mining explosion-proof and intrinsically safe DC stabilized power supply is designed and manufactured according to the coal industry standard MT/T408 "DC Stabilized Power Supply for Coal Mines". It can be used in industrial and mining enterprises where explosive gases (such as methane) are present in the underground air of coal mines or other surrounding areas.
1.环境温度:0℃~+40℃
2.平均相对湿度:<95 %(+25°C)
3.大气压力:80KPA~106KPA
4.使用场所:具有甲烷、煤尘爆炸性 混合物,但无破坏绝缘的腐蚀性气体的煤矿井下
KDW127/12矿用隔爆兼本安型直流稳压电源采用两级稳压和两级过流保护成果,技术先进、设计合理、使用可靠。
可与任意需要DC12V稳压电源的设备相接
KDW127/12矿用隔爆兼本安型直流稳压电源可同时与1个矿用本安型控制按钮和1个矿用本安型声光报警箱关联或单独与1个电磁阀关联。
20多年生产经验/线下实体工厂
产品名称KDW127直流稳压电源 |
电源电压输入AC 127V |
电源电压输出DC12V,1路 |
额定输出电流500MA |
过流保护整定值1A |
本安参数U0: DC12.5V10:1A |
